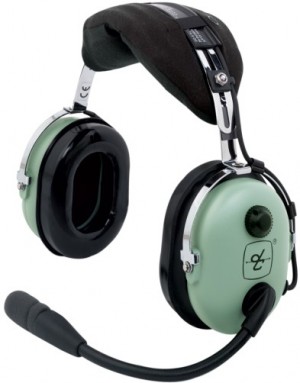

Model H10-13.4
Model H10-13.4

Fixed Wing Headsets (Passive)
Classic Comfort and Reliable Performance
The H10-13.4 is one of the best selling headsets in the aviation industry. Proven, reliable performance and remarkable comfort have made the H10-13.4 the top choice for thousands of pilots.

  • Expanded, super-soft, double foam head pad
  • Larger, yet lighter, undercut, Comfort Gel, ear seals
  • Universal flex boom for perfect microphone placement
  • Exclusive M-7A, the most advanced noise-cancelling microphone available
  • Low-profile volume control knob with detent settings
  • Molded cord assembly made to exceptional pull and flex standards
  • 5-Year Warranty, Made in USA
  • FAA TSO Approved C-139
  • Exceeds RTCA/DO-214 Standards
  • Weight (without cord assembly): 16.5 oz.
  • Certified Noise Reduction Rating - 23 dB

Available in five different configurations:

H10-13.4 (NSN 5965-01-446-1530)
The standard mono model with a five foot straight cord and dual plugs for fixed wing aircraft.

H10-13 S (NSN 5965-01-447-6273)
A stereo version of the H10-13.4, with a 5 foot straight cord and dual plugs. (Inline Stereo/Mono switch.)

H10-13 H (NSN 5965-01-446-1533)
The H10-13.4 for helicopter pilots. This model has a 5-foot extended coil cord and a single plug.

H10-13 Y
A model for younger pilots. This small version of the H10-13.4 is upgradeable to the full sized version when needed.

H10-13 N (NSN 5935-99-946-6652)
Terminated with NATO-Type plug.

Noise Attenuation Data
NRR
23 dB
Frequency (Hz) 125 250 500 1000 2000 3000 4000 6000 8000
Attenuation (dB) 16.6 20.7 27.4 33.0 30.5 36.2 38.1 36.6 36.6
Standard Deviation 2.6 2.5 2.5 2.6 3.1 3.5 3.7 3.7 3.6
