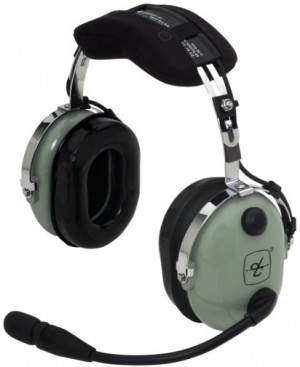

Model H10-26
Helicopter Headsets (Passive)
Outstanding Comfort and Performance.The H10-26 headset provides superior value, comfort and performance.
- Super-soft head pad
- Larger, yet lighter, Comfort Gel, undercut ear seals
- Flex boom assembly can be adjusted for perfect microphone placement
- M-7A, advanced noise-cancelling microphone
- Low-profile volume control knob with detent settings
- 5-Year Warranty, Made in USA
- 5-foot extended coil cord with U-174/U single plug
- FAA TSO Approved C-139
- Exceeds RTCA/DO-214 Standards
- Weight (without cord assembly): 19 oz.
- Certified Noise Reduction Rating - 24 dB
Available in one configuration:
H10-26 (NSN 5965-01-446-1483)
Model has a 5-foot extended coil cord and a single plug.
| Noise Attenuation Data | ||||||||||
| NRR 24 dB |
Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 3000 | 4000 | 6000 | 8000 |
| Attenuation (dB) | 14.3 | 21.5 | 27.1 | 31.8 | 36.0 | 39.6 | 41.8 | 39.7 | 37.0 | |
| Standard Deviation | 3.3 | 2.4 | 1.5 | 1.6 | 1.3 | 2.1 | 2.1 | 2.0 | 1.3 | |
