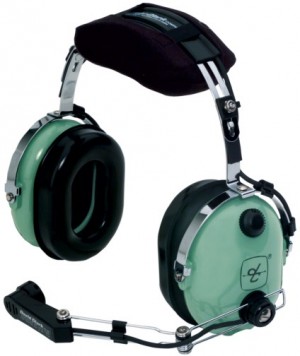

Model H10-36
Model H10-36
Helicopter Headsets (Passive)
Outstanding Value in a Proven Design.The H10-36 provides pilots with excellent performance and comfort in a value-priced helicopter headset.
  • Super-soft head pad
  • Larger, yet lighter, Comfort Gel, undercut ear seals
  • Wire boom for easy mic placement
  • Our "Best Value" Headset
  • M-1/DC microphone, the best Amplified Dynamic microphone on the market
  • Molded cord assembly made to exceptional pull and flex standards
  • 5-Year Warranty, Made in USA
  • 5-foot extended coil cord with U-174/U single plug
  • FAA TSO Approved C-139
  • Exceeds RTCA/DO-214 Standards
  • Weight (without cord assembly): 20 oz.
  • Certified Noise Reduction Rating - 24 dB

Available in one configuration:

H10-36 (NSN 5965-01-446-1506)
Model has a 5-foot coil cord and a single U-174/U plug for helicopter radios.

Noise Attenuation Data
NRR
24 dB
Frequency (Hz) 125 250 500 1000 2000 3000 4000 6000 8000
Attenuation (dB) 14.3 21.5 27.1 31.8 36.0 39.6 41.8 39.7 37.0
Standard Deviation 3.3 2.4 1.5 1.6 1.3 2.1 2.1 2.0 1.3
