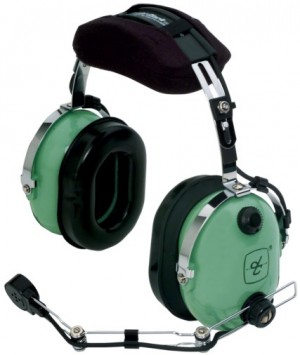

Model H10-56
Model H10-56

Helicopter Headsets (Passive)
Maximum Noise Attenuation for Extremely Noisy Helicopters.The H10-56 is our quietest passive noise-attenuating helicopter headset with built-in comfort.



  • Super-soft head pad
  • Larger, yet lighter, Comfort Gel, undercut ear seals
  • Hinged wire boom with the M-101 amplified dynamic microphone
  • Conforms to MIL-M-27291A
  • Coil Cord (5' extended) with U-174/U Plug
  • Molded cords made to exceptional pull and flex standards.
  • 5-Year Warranty, Made in USA
  • 5-foot extended coil cord with U-174/U single plug
  • FAA TSO Approved C-139
  • Exceeds RTCA/DO-214 Standards
  • Weight (without cord assembly): 20 oz.
  • Certified Noise Reduction Rating - 27 dB

Available in two different configurations:

H10-56 (NSN 5965-01-330-4042)

H10-56N
Models have a 5-foot extended coil cord and a single plug.

Noise Attenuation Data
NRR
27 dB
Frequency (Hz) 125 250 500 1000 2000 3000 4000 6000 8000
Attenuation (dB) 17.6 25.0 30.9 33.9 36.9 38.4 39.0 37.7 35.7
Standard Deviation 1.9 3.0 2.2 1.3 1.5 2.1 2.1 2.5 2.2
