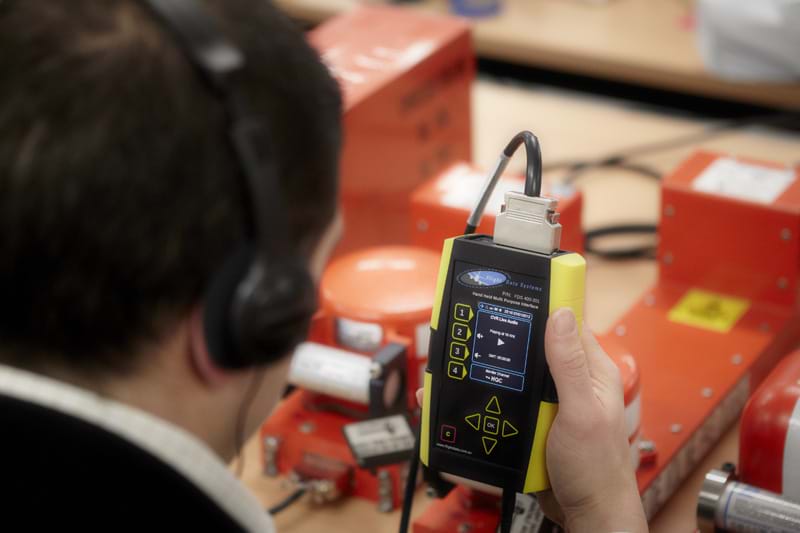

手持多用途接口(HHMPI)是一种便携式仪器，用于从飞行数据记录器(FDR)下载数据和从驾驶舱语音记录器(CVR)下载音频。它通过接口电缆连接到记录器，该电缆可以识别所附记录器的类型。下载的数据存储在内部存储器、USB闪存盘、flash卡、SD卡或可选PCMCIA卡中。HHMPI (p/n FDS400-301)提供一系列额外的飞行记录功能，包括工程单元重放，航空电子技术人员可以在飞机或办公室使用。
功能特点：
n 四种FDR下载选项:(1)下载全部，(2)下载最近一次，(3)下载内存标记，(4)时间选择下载
n 两个CVR下载选项： CVR下载全部和时间选择CVR下载
n 能够从兼容多种类型的FDR和CVR下载，如L3, Honeywell, Universal & GE等。
n 在飞机上，实时数据可以以工程单位(作为选项)、十进制、二进制、八进制和十六进制格式查看
n 通过web界面可以将文件上传到已配置和指定的FTP服务器上
n 飞行数据文件可从飞行记录仪传送到可下载的存储设备，包括;U盘、闪存盘、SD卡、内部存储器或使用HHMPI作为大容量存储器，通过USB连接线将文件传输到PC硬盘驱动器。
n 通过USB无线加密狗可实现无线传输数据
n 以太网连接，通过局域网(LAN)传输文件，并通过web配置HHMPI功能
n 使用HHMPI支架快速充电内部电池，并无缝传输文件到PC(通过USB)或FTP服务器(通过以太网)
n HHMPI拥有CE和FCC认证。
选型配置清单：
|
HHMPI, Interface Cables & Accessories |
||
|
Flight Recorder P/N |
HHMPI & Cable P/N |
Description |
|
N/A |
FDS40-0104 |
Multi Purpose Interface (MPI V3 Civil Variant) |
|
N/A |
FDS40-0301 |
Hand Held Multi-Purpose Interface (HHMPI) Kit *Includes HHMPI Cradle |
|
N/A |
FDS40-5102 |
HHMPI Engineering Unit conversion software |
|
N/A |
FDS40-0331 |
HHMPI PCMCIA Assembly |
|
N/A |
FDS40-0332 |
Wireless Capability Option |
|
N/A |
FDS40-0373 |
HHMPI Docking Cradle |
|
Honeywell UFDR 980-4100-xxx |
FDS40-0204 |
Honeywell DFDR (Sunstrand DFDR) UFDR, Interface Cable |
|
|
FDS40-0275 |
Honeywell AR FDR Interface Cable (45 foot length) |
|
Honeywell SSFDR 980-4120-xxx 980-4700-xxx |
FDS40-0203 |
Honeywell SSFDR Interface Cable |
|
Honeywell (SRVIVR) 980-4131-xxx LW FDR 980-6050-xxx LW CVR 980-6044-XXX (LW CVDR) |
FDS40-0210 |
Honeywell Light Weight (AR HFR5) Interface cable. Requires on-aircraft CVR download cable for insitu downloads |
|
Honeywell SSFDR 980-4710-00X |
FDS40-0208 |
Honeywell AR Series FDR Interface Cable |
|
Honeywell HFR5-D 980-4750-009 |
FDS40-0232 |
Honeywell HFR5-D Interface Cable |
|
Honeywell HFR5-V CVR 980-6032-001 |
FDS40-0274 |
Honeywell HFR5-V Interface Cable. Requires on-aircraft CVR download cable for insitu downloads |
|
Honeywell SSCVR 980-6020-xxx 980-6022-xxx |
FDS40-0216 |
Honeywell CVR Download and Power, Interface Cable (On-bench) |
|
Honeywell DVDR 980-6025-001 (DVDR) |
FDS40-0227 |
Honeywell DVDR, Interface Cable. Requires on-aircraft CVR download cable for insitu downloads |
|
Lockheed 10077A500-803 FDR (L209) |
FDS40-0205 |
Lockheed L209/Plessey 1584 Interface Cable |
|
L3 Comm QAR |
FDS40-0241 |
L3 Comm USB Cable |
|
L3 Comm F1000 SSFDR S603, S703, S800, S903 |
FDS40-0201 |
L3 Comm. F1000, SSFDR Interface Cable |
|
L3 Comm FDR, CVR, CVDR FA2100 / FA2200 / FA2300 |
FDS40-0202 |
L3 Comm. FA2100 CVDR Interface Cable. Requires on-aircraft CVR download cable for insitu downloads |
|
L3 Comm SRVIVR 1493100-1XXXX CVR 1493100-2XXXX FDR 1493100-3XXX CVDR |
FDS40-0209 |
L3 Comm. SRVIVR Interface Cable. Requires on-aircraft CVR download cable for insitu downloads |
|
L3 Comm FDR & CVR FA5000 FDR & CVR |
FDS40-0223 |
L3 Com. FA5000 Interface Cable. Requires on-aircraft CVR download cable for insitu downloads |
|
Universal 1607 FDR 1606 CVR 1605 CVDR |
FDS40-0224 |
UASC CVFDR Interface Cable. Requires on-aircraft CVR download cable for insitu downloads |
|
BASE MCR500-xxx / SCR 500-xxx |
FDS40-0212 |
BAe MCR500 Interface Cable |
|
Penny & Giles MPFR D51615-XXX |
FDS40-0271 |
MPFR Bench Download Cable |
|
Penny & Giles 91005 (B&D/Spirent)D51615-XXX |
FDS40-0270 |
B&D (Spirent) Interface Cable |
|
On-Aircraft CVR Download Cables For CVR Flight Recorder P/NInterface P/NDescription |
||
|
Honeywell SSCVR 980-6020-XXX 980-6022-XXX |
FDS40-0215 |
Honeywell CVR Rack Adaptor (On-aircraft) |
|
Honeywell AR 980-6021-032 CVR 980-6021-066 CVR 980-6021-072 CVFDR 980-6021-083 CVFDR |
FDS40-0246 |
Honeywell AR Series CVR/Combi Interface Cable (On-Aircraft) |
|
Honeywell HFR5-V CVR 980-6032-001 |
FDS40-0247 |
ARINC-757 CVR Rack Adaptor. (L3 FA2100 and Honeywell HFR5-V CVR Aircraft Rack Adapter. On-Aircraft) |
|
Honeywell SRVIVR 980-6050-xxx (LW CVR) 980-6044-XXX (LW CVDR) |
FDS40-0259 |
Honeywell LW/SRVIVR CVR Power Cable (On-Aircraft) |
|
L-3 Comm FA2100 CVR & CVDR FA2300 CVDR |
FDS40-0247 |
ARINC-757 CVR Rack Adaptor. (L3 FA2100 and Honeywell HFR5-V CVR Aircraft Rack Adapter. On-Aircraft) |
|
L3 Comm FDR & CVR FA5000 FDR & CVR. |
FDS40-0247 |
ARINC-757 CVR Rack Adaptor. (L3 FA2100 and Honeywell HFR5-V CVR Aircraft Rack Adapter. On-Aircraft) |
|
L-3 SRVIVR 1493100-1XXX 1493199-3XXX |
FDS40-0260 |
L3 Com SRVIVR CVR Power Cable (On-Aircraft) |
|
Universal 1605 CVDR 1606 CVR |
FDS40-0258 (Power) |
UASC 1605 1606 series CVR Download Power Cable (On-Aircraft) |
